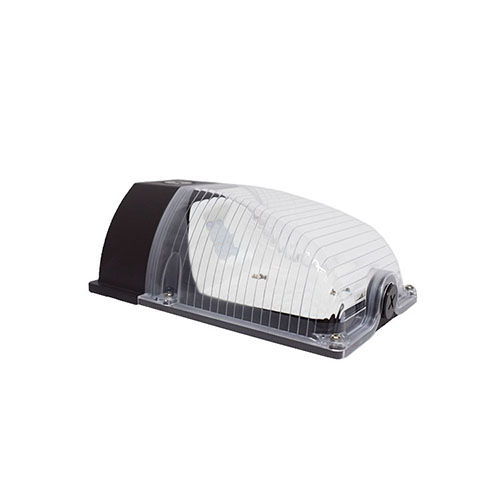

mini led wallpack light 25w dusk to dawn outdoor wall light with photocell option waterproof

  • With a built-in photocell, a die-cast aluminum housing, and a frosted/clear polycarbonate lens, the mini wall pack is a versatile and durable outdoor luminaire. The 120V built-in photocell automatically turns the light on at dusk and off at dawn for convenience and energy savings. Consume 15/25/30 watts and replace existing 100 watt traditional metal halide LED wall pack fixtures for more energy and cost savings. Switch to LED wall pack lights for less costs and more energy savings and longer rate life for outdoor commercial applications.



    General features:

    • Efficacy: 105lm/W
    • CRI: >70
    • Color Temperature: 3000K/4000K/5000K
    • Life time: >50,000 hours
    • Power Factor: 0.98at 100VAC 0.90 at 277VAC
    • Input Voltage: 100-277VAC
    • Housing: Die-cast aluminum body(Bronze/Black). PC diffuse
    • Installation: Recessed outlet box or wall surface
    • Operating temperature: -30℃ Up to 50℃ (-22℉up to122℉).
    • Environment: damp/wet locations
    • Warranty: 5 years
    • Driver Type: UL High performance LED driver
    • LED Type: High performance LM80 SMD3030 LED
    • Material: Aluminum Housing & Polycarbonate Refractor
  • Your Name is required *

    Email is reauired *

    Company is required

    Tel is required

    Product Name

    Quantity

    Requirement *

    Update
    Select a file smaller than 10 MB to upload

    • Wattage
      100W,150W
    • Lumen
      140 lm/w
    • Color Temperature
      3000K, 4000K,6000K
    • Voltage
      100-265Vac
    • Material
      Aluminum
    • Size
      380*380*70mm
    • Beam Angle
      30° 60° 90° T2 T3 T4
    • CRI
      >70
    • PF
      >0.9
